51 24... Removing and installing/replacing trim on shaft bearing for rear window wiper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out covers (1).

Installation:

Catches (2) of covers (1) must not be damaged.

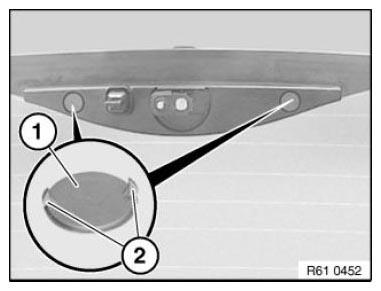

Fig 1: Identifying Cover With Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove trim (2).

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
