Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove PANEL FOR REAR LID

Release screws (1).

Disconnect plug connection (2) and remove rear window lock (3) towards bottom.

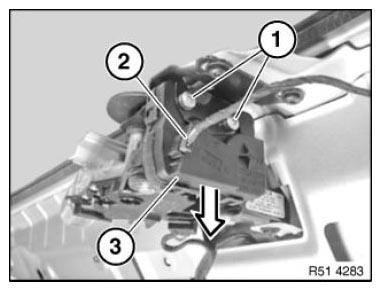

Fig 1: Removing Rear Window Lock
G06978827Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are correctly seated on rear window lock bracket.

Fig 2: Identifying Rear Window Lock Bracket Guides
G05506572Courtesy of BMW OF NORTH AMERICA, INC.
