51 24 130 Removing and installing/replacing striker for rear lid lock
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

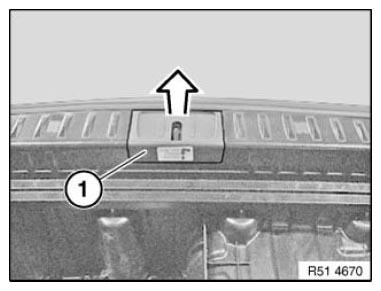

Snap out cover (1) and lift out.
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:

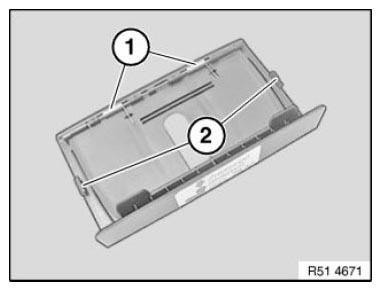

Make sure spring (1) is correctly seated.
Catches (2) must not be damaged
Courtesy of BMW OF NORTH AMERICA, INC.

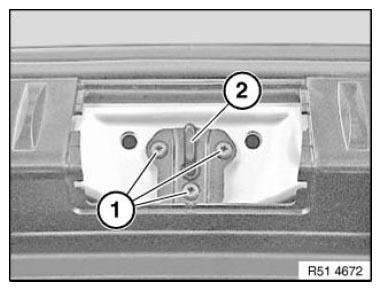

Unfasten screws (1) and remove striker (2).
Tightening torque 51 24 2AZ
.
Installation:
Adjust STRIKER .
Courtesy of BMW OF NORTH AMERICA, INC.
