Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove PANEL FOR REAR LID

Release screws (1).

Tightening torque 51 24 1AZ .

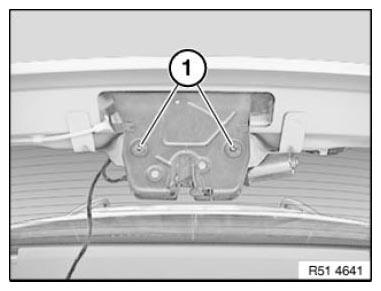

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rear lid lock (1) slightly.

Disconnect Bowden cable (2).

Disconnect plug connection (3) and remove rear lid lock (2).

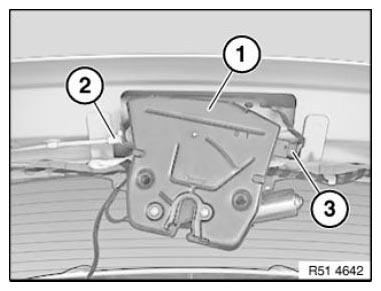

Fig 2: Identifying Bowden Cable With Plug Connection And Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.
