Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release retainers (1) and remove Bowden cable (2).

Installation:

If necessary, replace faulty clips (1).

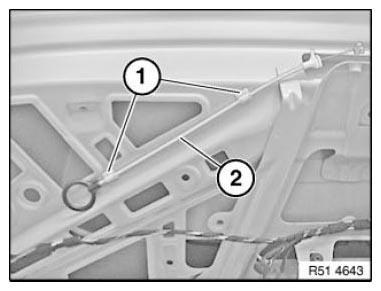

Fig 1: Identifying Bowden Cable With Clips
G06978819Courtesy of BMW OF NORTH AMERICA, INC.
