Installation sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, attach all clips to trim panel (3)
  2. Feed in trim panel (3) at bottom
  3. Connect electrical plug connections
  4. Ensure correct cable routing
  5. Clip trim panel (3) into body
  6. Add final details to vehicle

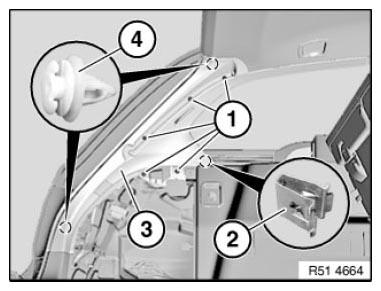

Fig 1: Identifying Trim Panel With Cables And Retainers
G06978978Courtesy of BMW OF NORTH AMERICA, INC.
