Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Open rear side window

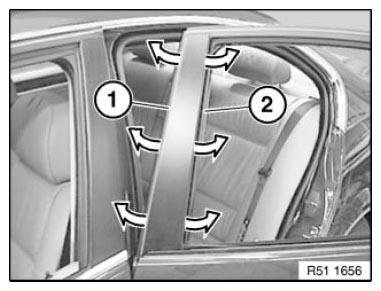

Detach rubber seal (1) and rubber guide (2) from trim.

Fig 1: Disconnecting Rubber Seal And Rubber Guide From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Carefully detach trim (2) towards front/top.

Installation:

Fitted foam pieces must not be damaged when trim (2) is pushed in.

Fig 2: Removing Trim On Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty plastic nuts (1).

Fig 3: Identifying Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
