Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove COVER ON INSIDE DOOR WINDOW FRAME
Release TRIM ON WINDOW GUIDE and slide downwards slightly, do not remove

E91 only:

Remove TRIM ON WINDOW FRAME at rear

NOTE: Window cavity cover strip does not have to be removed.

Lever out rubber guide (1) on door window frame at front (2) with special tool 00 9 317 .

Fig 1: Removing Rubber Guide On Front Door Window Frame Using Special Tool (00 9 317)

G04767905

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rubber guide (1) out of window guide.

Detach rubber guide (1) in direction of arrow from door.

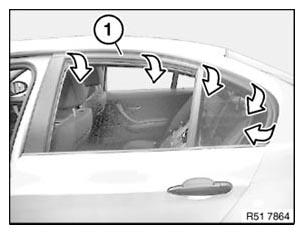

Fig 2: Disconnecting Rubber Guide From Door

G06202713

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten rubber guide (2) prior to fitting with APPROVED ANTI-FRICTION AGENT .

Close door window glass (1) a little.

Push rubber guide (2) onto door window glass (1) and into window guide (3).

Fig 3: Pushing Rubber Guide On Door Window Glass

G04788708

Courtesy of BMW OF NORTH AMERICA, INC.
