Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

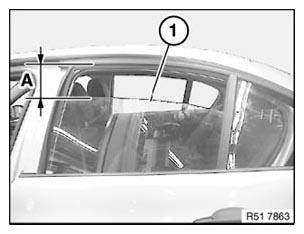

Open door window glass (1) down to distance (A)

A = approx. 120 mm

Fig 1: Identifying Door Window Glass Distance From Upper Trim

G06202708

Courtesy of BMW OF NORTH AMERICA, INC.

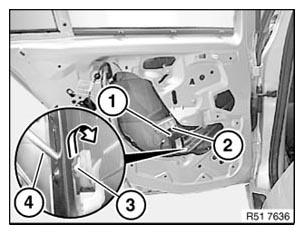

IMPORTANT: Disconnect plug connection (1) from power window motor (2) (risk of trapping).

Lever out catches (3) with screwdriver (4) in direction of arrow.

Installation:

Catch (3) must be correctly clipped into place.

Carry out function check on power window unit and anti-trapping protection.

If necessary, NORMALIZE power window unit.

Fig 2: Removing Catches Using Screwdriver

G06202709

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of window guide (3) must not be damaged or missing:

Catch
Buffer stop

Fig 3: Identifying Catch, Buffer Stop And Window Guide

G04788682

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door window glass (1) towards top.

Installation:

Door window glass does not need to be adjusted.

Fig 4: Removing Door Window Glass

G04767915

Courtesy of BMW OF NORTH AMERICA, INC.
