51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame: Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).

Fig 1: Removing Hook In Direction Of Arrow From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version without roller sun blind:

Lever out cover (1) at clips (2).

Unclip cover (1) in direction of arrow or lever out and remove.

NOTE: Do not tear off cover (1) in area (3).

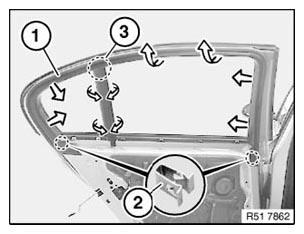

Fig 2: Removing Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover (1) must not be damaged:

2 All-round guide
3 Connection point

Fig 3: Identifying Cover, Guide And Connection Point

Courtesy of BMW OF NORTH AMERICA, INC.
