51 49 017 Removing and installing/replacing trim panel for rear window frame on (inside) left or right: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

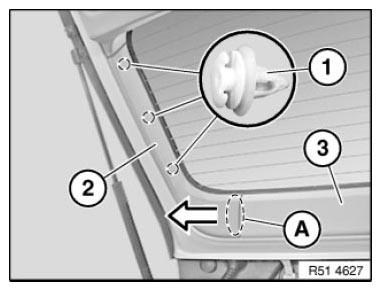

Release clips (1) with special tool 00 9 317 .

Feed out trim panel (2) in area (A) in direction of arrow from trim panel (3).

Fig 1: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

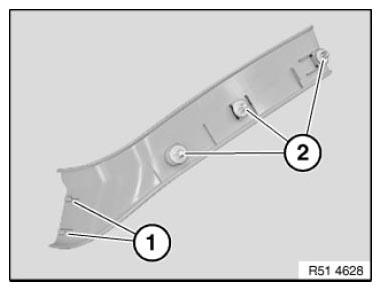

Guides (1) must not be damaged.

If necessary, replace faulty clips (2).

Fig 2: Identifying Guides And Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.
