Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip clips (2) with special tool 00 9 317 and remove trim (1) in direction of arrow.

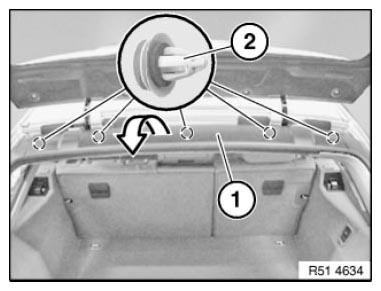

Fig 1: Removing Trim
G06979081Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) on trim (2) must not be damaged or missing.

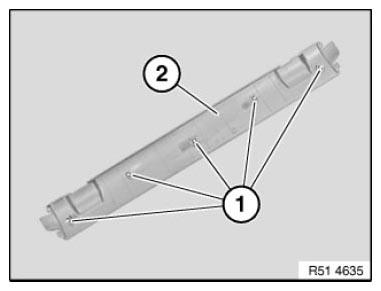

Fig 2: Identifying Clips And Trim
G06979082Courtesy of BMW OF NORTH AMERICA, INC.
