51 49 003 Removing and installing/replacing trim for rear window frame on left or right: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release trim (2) at clips (1) with special tool 00 9 317 and remove in outwards direction.

Fig 1: Removing Trim At Clips Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and clips (2) must not be damaged or missing.

Fig 2: Identifying Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Trim (1) must be correctly inserted in guides (2 and 3).

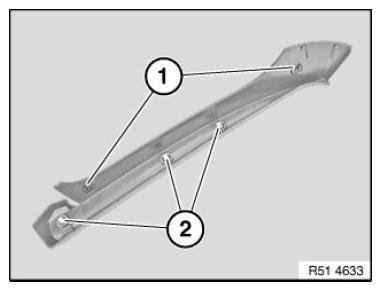

Fig 3: Identifying Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
