Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

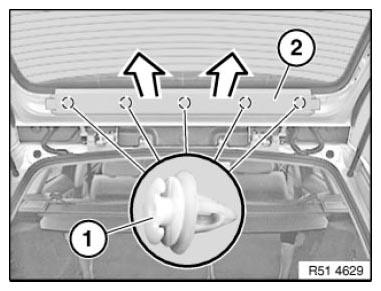

Release clips (1) on panel (2) with special tool 00 9 317 and remove panel (2).

Fig 1: Removing Clips On Panel
G06979073Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

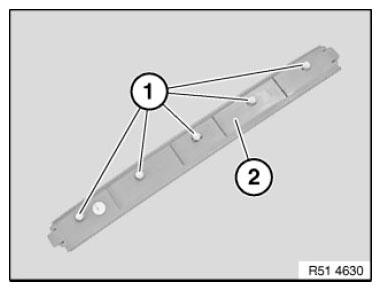

If necessary, replace faulty clips (1) on panel (2).

Fig 2: Identifying Faulty Clips On Panel
G06979074Courtesy of BMW OF NORTH AMERICA, INC.
