Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear BUMPER TRIM
Remove BOTTOM MIDDLE TRIM ON REAR BUMPER

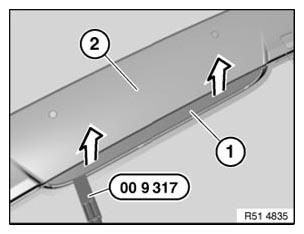

Carefully heat trim (1) with hot air blower and detach with special tool 00 9 317 from bumper (2).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Minimum object temperature of trim and bumper ≥ 18°C.

If this temperature is not achieved, the components must be preheated.

For cleaning, use a fluff-free disposable cloth or a clean cleaning cloth.

Clean adhesive area of bumper with spirit.

Air drying time at least 1 minute.

Installation:

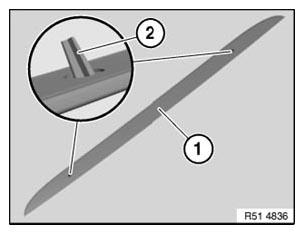

Trim (1) is positioned over guides (2) on bumper.

Remove liner from trim (1).

Press down trim (1) firmly with back of your hands over entire surface, especially the ends.

Fig 2: Identifying Trim With Guides

Courtesy of BMW OF NORTH AMERICA, INC.
