51 12... Predrill mounting holes for RDC trigger transmitter (only applicable to construction period from 03/09 to 09/09 with M Technic aerodynamic package)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Holes in each case with 7 mm dia.

Dimensions for left side:

A ₁ = 18 mm

B ₁ = 45 mm

C ₁ = 88.5 mm

D ₁ = 89 mm

Installation:

Fit left RDC trigger transmitter with plug connection facing upwards. Installation position of retaining clip (1) as pictured.

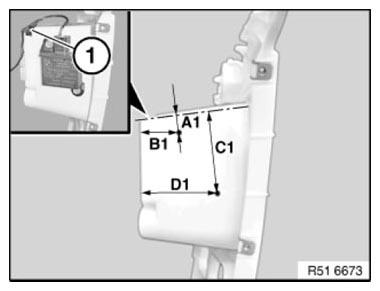

Fig 1: Identifying Retaining Clip Installation Position (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Holes in each case with 7 mm dia.

Dimensions for right side:

A ₂ = 21.5 mm

B ₂ = 86.5 mm

C ₂ = 90 mm

D ₂ = 42.5 mm

Installation:

Fit right RDC trigger transmitter with plug connection facing downwards.

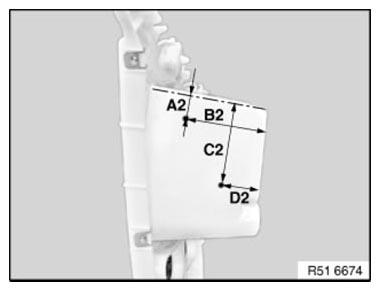

Fig 2: Identifying Retaining Clip Installation Position (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure RDC trigger transmitter with M6x16 screws (part no. 07 11 9 904 371) and self-locking nuts with washers (part no. 07 11 9 900 299).

Tightening torque: 6 Nm.
