Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove BATTERY COVER
Remove MOUNTING IN LUGGAGE COMPARTMENT on left
Remove trim panels for roof pillars at rear D-pillar) left/right. See 51 43 259 Removing and installing/replacing trim panel for rear left or right roof pillar (D-pillar) .

Release clips (1) and remove storage pan (2).

Release screws (3) and remove covers (4).

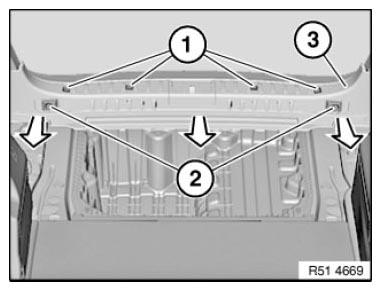

Fig 1: Identifying Screws, Covers, Clips And Storage Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out covers (1) and release screws underneath.

Release screws (2) and remove lashing eyelets.

Detach mucket in area of trim (3).

Remove trim (3) inwards.

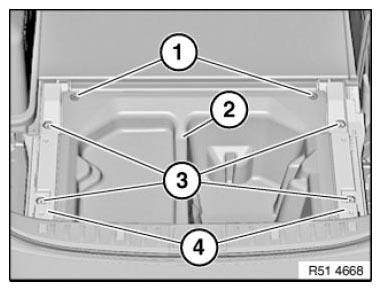

Fig 2: Removing Mucket And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
