51 36... Firmly tensioning rear left or right side window: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Dampen down suction faces.

Fit special tool 51 3 010 to tool trolley and secure side window.

Secure special tool 51 3 010 (without joint) to inside of window.

Fig 1: Securing Side Window Using Special Tool (51 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 51 3 010 (without joint) opposite to inside of window.

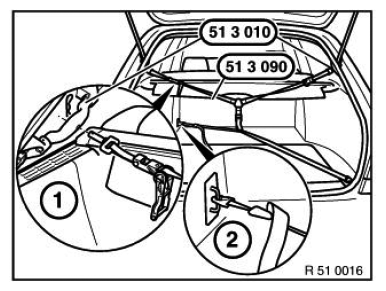

Secure special tool 51 3 090 (tensioning belt) at top to special tool 51 3 010 (1). Hook tensioning belt at bottom diagonally in lashing eyes and pull tight (2).

Fig 2: Securing Special Tool (51 3 010) Opposite To Inside Of Window

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten middle belt tensioner (4) so that special tool 51 3 090 is at a 90° angle to side window.

Tighten top belt tensioner (3) until eye can be pulled approx. 20 mm toward rear (4).

Fig 3: Locating Middle Belt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.
