Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove left and right luggage compartment wheel arch trims . See 5147131 REPLACING FRONT TRIM FOR LUGGAGE COMPARTMENT FLOOR or 5146050 REMOVING AND INSTALLING/REPLACING TOP TRIM ON REAR APRON .

Release screws (1).

Remove guide (2).

Fig 1: Identifying Screws And Guide

G04726868

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 2: Identifying Screw

G04726869

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

Fig 3: Identifying Screws And Cover

G04726870

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove multifunction pan.

Tightening torque 51 71 9AZ .

Fig 4: Identifying Multifunction Pan Nuts

G04726871

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

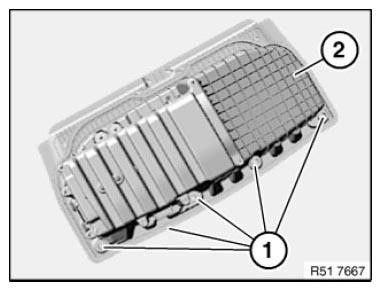

Fig 5: Identifying Seals On Multifunction Pan

G06979141

Courtesy of BMW OF NORTH AMERICA, INC.
