Observe installation sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten down screws (1)

    Tightening torque,

    51 71 1AZ .

  2. Adjust rear spoiler (see next work step)
  3. Tighten down nut (3)

    Tightening torque, 51 71 1AZ .

  4. Secure expander rivets (2)

Make sure expander rivets (2) are correctly seated

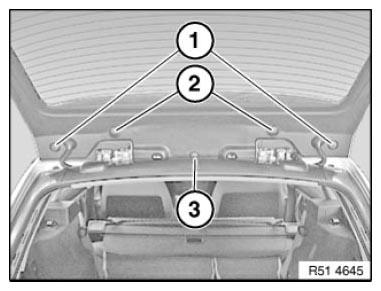

Fig 1: Identifying Screws, Nut And Rivets
G06979120Courtesy of BMW OF NORTH AMERICA, INC.
