Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove MIRROR
Remove TRIM ON WINDOW FRAME of front door

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Remove sound insulation (1).

Fig 1: Removing Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) in direction of arrow from front door (2).

Installation:

Moisten rubber guide (2) prior to fitting with APPROVED ANTI-FRICTION AGENT .

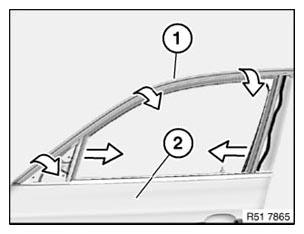

Fig 2: Disconnecting Rubber Guide From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber guide (1) must not be damaged in corners (2).

Fig 3: Identifying Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.
