Necessary preliminary tasks

Driver's side only:

• Remove DECORATIVE STRIP FROM DOOR TRIM PANEL

Passenger side only:

• Remove COVER ON DOOR HANDLE

Driver's side only:

Release screws (1).

Tightening torque 51 41 1AZ .

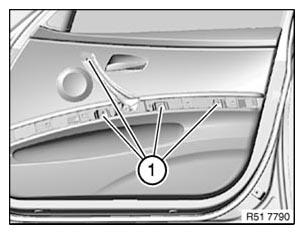

Fig 1: Identifying Front Door Trim Panel Screws (Driver'S Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side only:

Release screws (1).

Tightening torque 51 41 1AZ .

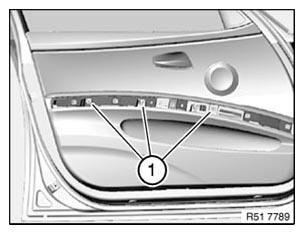

Fig 2: Identifying Front Door Trim Panel Screws (Passenger Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) for door trim panel (2) with special tool 00 9 317 .

Carefully unclip door trim panel (1) at top from retainers (2).

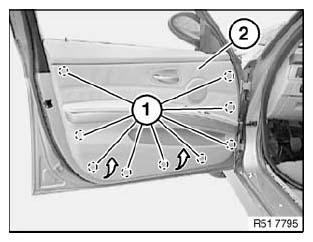

Fig 3: Removing Door Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

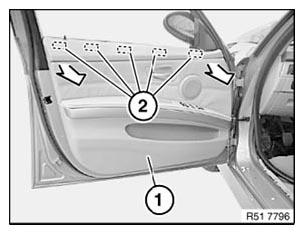

Fig 4: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 5: Identifying Door Lock And Hook Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

1. Grey clip
2. White clip

US/CND version:

Crashpad (3) must be correctly fitted.

(SEE REPLACING DOOR TRIM PANEL)

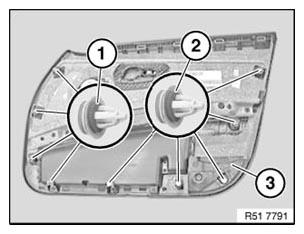

Fig 6: Identifying Grey Clip, White Clip And Crashpad

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

• Open door window.
• Lock with vehicle key.
• Check for ease-of-movement on retaining button linkage
• If necessary, align linkages
