Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT BUMPER TRIM

NOTE: The operation is described on the left side; proceed in the same way for the right side.

6-cylinder models only:

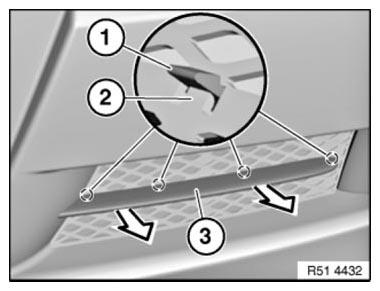

Release catches (1) from inside, taking care not to damage catch (2).

Remove trim (3) towards front.

Installation:

Catches (1 and 2) must not be damaged.

Fig 1: Removing Trim Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on bumper trim (2).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

Fig 2: Identifying Catches On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
