Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR SPOILER
Disconnect all plug connections on AERIAL/ANTENNA AMPLIFIER

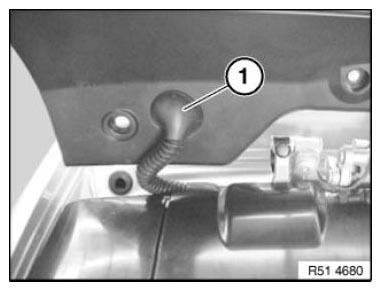

Feed out rubber grommet (1) on left/right with cable.

Fig 1: Identifying Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This work step must be carried out with a second person assisting.

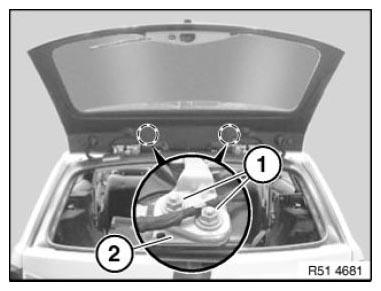

Slacken nuts (1) on left/right.

If shims (2) are in place, remove them and make a note of their number and positions.

Release nuts (1) on left/right and remove rear window.

Set rear window down on a clean surface.

IMPORTANT: The rear window must not be pulled or lifted by its plugs, wires or foil conductor (risk of damage).

Fig 2: Identifying Shims And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rear window (1) and fix in place with nuts (2).

Check GAP DIMENSIONS of rear window.

If necessary, adjust REAR WINDOW .

Tightening torque 51 31 1AZ .

Fig 3: Installing Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
