Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

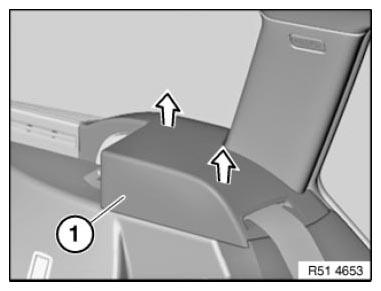

Unclip cover (1) towards top and fold forwards.

Fig 1: Unclip Cover Towards Top
G06979037Courtesy of BMW OF NORTH AMERICA, INC.

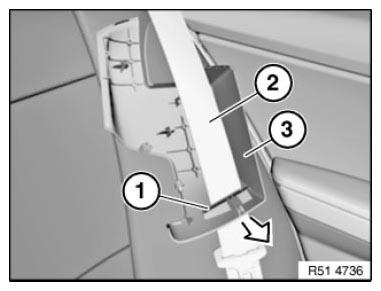

Slide trim (1) in direction of arrow out of cover (3).

Feed belt (2) out of cover (3).

Fig 2: Removing Belt From Cover
G06979038Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

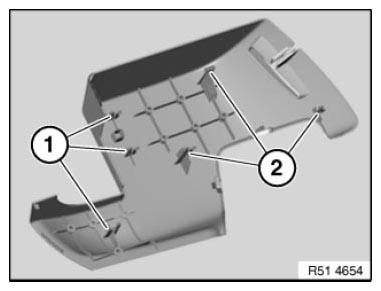

Catches (1 and 2) must not be damaged.

Fig 3: Identifying Catches
G06979039Courtesy of BMW OF NORTH AMERICA, INC.
