Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove PANEL FOR ROOF PILLAR AT REAR (D-PILLAR)
Remove COVERS FOR CAPPING
Remove luggage compartment wheel arch trim See 5147161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or 5147151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

Release screws (1).

Right side only: Release screw (2).

Feed out capping (3) towards top/rear.

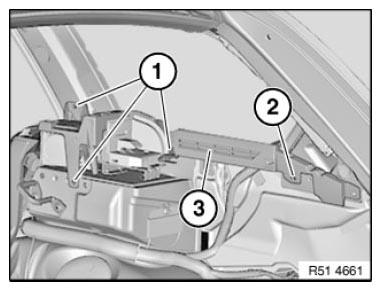

Fig 1: Identifying Screws And Capping

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) of capping (2) must be inserted into mountings (3) in body.

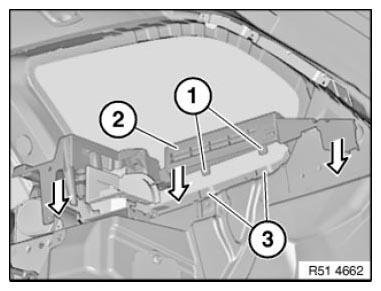

Fig 2: Identifying Guide Of Capping And Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
