51 14 000 Removing and installing/replacing front BMW badge
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!

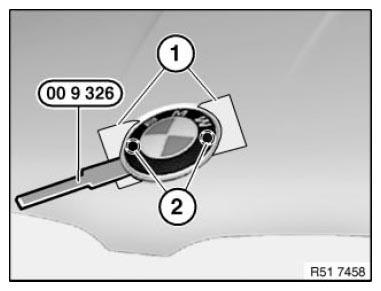

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 325 at guide pins (2).
Installation:

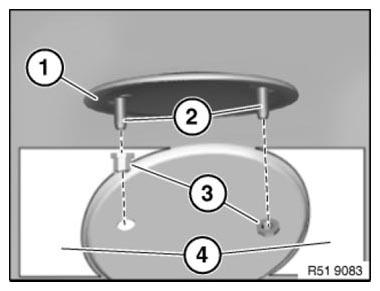

The following parts must not be damaged or missing, replace if necessary:
- Badge
- Guide pins
- Grommets
Adhesive tape (4)
