Necessary preliminary work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off ignition
- only E60, E61, E63, E64, E83, E85, E86, E70, E71:
Remove reinforcement plate
- only E70, E81, E87, E82, E88, E90, E91, E92, E93:
Remove UNDERBODY PROTECTION
- Drain off engine oil See SERVICE - ENGINE OIL (GASOLINE VEHICLES FROM 03/2007 TO 08/2008) or ENGINE OIL SERVICE (N52K)

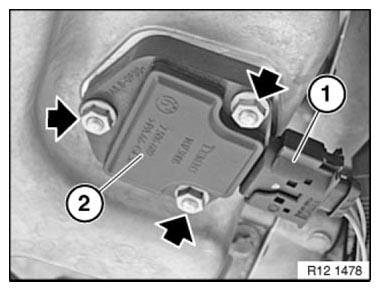

Release connector (1) and remove.
Unscrew nuts.
Tightening torque 12 61 2AZ . See OIL PRESSURE, OIL TEMPERATURE, OIL LEVEL DISPLAY or ENGINE OIL PRESSURE, ENGINE OIL TEMPERATURE, OIL CONDITION DISPLAY .
Remove oil level sensor (2).
Installation note:
Clean sealing surface on oil sump.
Replace gasket on oil level sensor.
An excessively low torque value will result in oil leaks.
An excessively high torque value will result in damage to the oil level sensor.
Top up engine oil.
