71 60... Replacing release unit for trailer tow hitch: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing ring (1) and coat with oil.

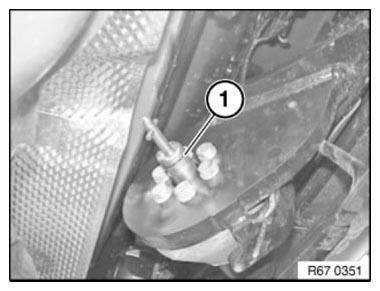

Fig 1: Identifying Sealing Ring

G06852201

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align lock (2) on gear unit to release pin (3).

Fit gear unit (1) up to stop.

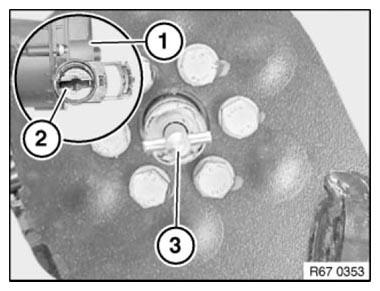

Fig 2: Aligning Lock On Gear Unit To Release Pin

G06852202

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Fit retaining lug on retainer (1) as pictured.
Retainer (1) must snap firmly into correctly!

Fit special tool 72 0 010 onto retainer (1).

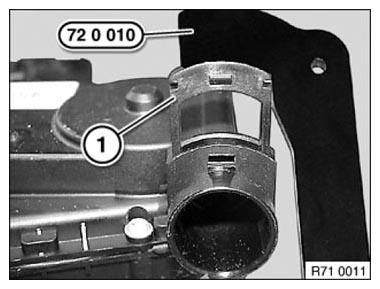

Fig 3: Fitting Special Tool 72 0 010 Onto Retainer

G06852203

Courtesy of BMW OF NORTH AMERICA, INC.

Set retainer (1) on gear unit (2) and snap into place with special tool 72 0 010 in direction of arrow.

Installation:

Check protective cap (3) for damage and replace if necessary.

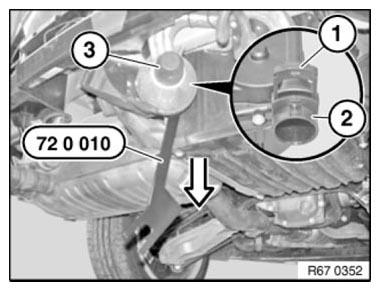

Fig 4: Removing Protective Cap

G06852204

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing protective cap:

If necessary, cut off cable tie (1) from gear unit (2).

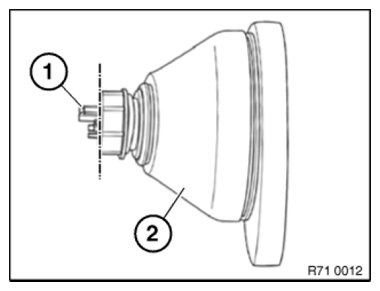

Fig 5: Identifying Cable Tie And Gear Unit

G06852205

Courtesy of BMW OF NORTH AMERICA, INC.
