Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove LEFT FRONT SEAT
Remove FRONT LEFT ENTRANCE COVER STRIP

Lift carpet (1) and fold back to side.

Remove underlay (2).

Disconnect plug connection.

Installation:

Ensure proper locking of plug connector.

Slacken screws (3)

Release screws (4) and remove bracket with yaw sensor.

Installation:

Tightening torque 34 51 3AZ .

Fig 1: Identifying Lift Carpet, Underlay And Slacken Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing DSC sensor:

Release screws (1) and modify DSC sensor (2).

Installation:

Tightening torque 34 51 2AZ .

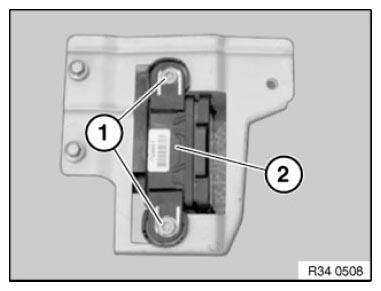

Fig 2: Identifying Screws And DSC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out calibration/adjustment of DSC sensor.
