34 41... Removing and installing or replacing gaiter for handbrake lever

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

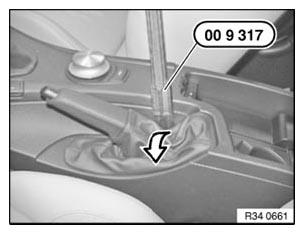

Unclip gaiter with special tool 00 9 317 .

Fig 1: Pulling Handbrake Lever Gaiter
G06204080Courtesy of BMW OF NORTH AMERICA, INC.

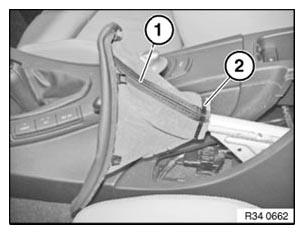

Pull gaiter (1) over handbrake lever.

Cut cable ties (2) and remove gaiter.

Installation:

Eye of cable tie must face downward

Fig 2: Identifying Handbrake Lever Gaiter And Cable Ties
G06204081Courtesy of BMW OF NORTH AMERICA, INC.
