61 61 041 Replacing both windscreen wiper blades

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not contact the windscreen without its wiper blade.

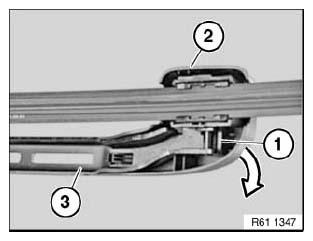

Fold wiper arm (3) away from windscreen.

Press lock (1) and remove cover cap (2) in direction of arrow.

Installation:

Make sure cover cap (2) is correctly seated.

Fig 1: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

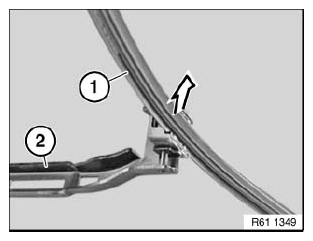

Turn windscreen wiper blade (1) at an angle of 90 ° and remove from windscreen wiper arm (2).

Fig 2: Removing Windscreen Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

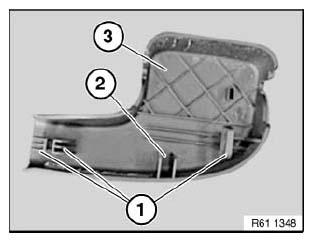

Catches (1) and guide (2) of window cavity cover cap (6) must not be damaged or missing.

Fig 3: Identifying Catches And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
