Necessary preliminary work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE front right side repeater light
- Partially remove front right WHEEL ARCH COVER
Clip cable (1) out of mounting.
Clip hose (5) out of mounting.
Unlock filler hose (2) and detach from fitting on fluid reservoir (3).
NOTE:
Catch any escaping washer fluid if necessary.
Unscrew bolts (4) and (6).
Pull fluid reservoir (3) forwards slightly.
Installation note:
Retaining lug (2) of fluid reservoir (1) must be correctly seated in clip (3).

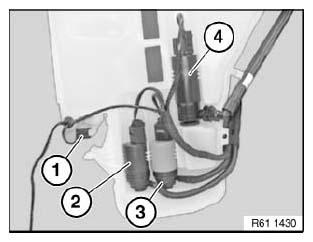

Unlock and disconnect all plug connections.
Remove level switch (1) .
Remove WINDSCREEN WASHER PUMP (3) .
If necessary, remove WASHER PUMP FOR REAR WINDOW WASHER SYSTEM (2) .
If necessary, remove WASHER PUMP FOR HEADLIGHT WASHER SYSTEM (4) .
Remove washer reservoir.
Installation note:
- Replace strainers on washer pumps
- Coat sealing rings of washer pumps with lubricant
- Lay lines of washer pumps without kinks and clip into holders on fluid tank
- Fill fluid tank for windscreen washer system
