Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove right WHEEL ARCH COVER
- Release FLUID RESERVOIR FOR WINDSCREEN WASHER SYSTEM and pull out

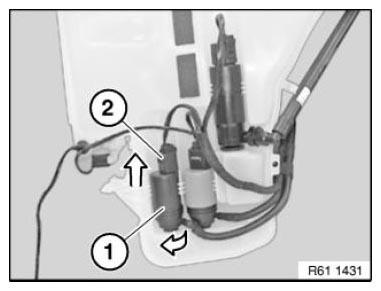

Unfasten plug connection (2) and disconnect.
Detach hose from washer pump for rear window washer system (1).
Turn washer pump for rear window washer system (1) if necessary and pull in direction of arrow out of fluid reservoir for windscreen washer system.
Installation:
Coat sealing ring of washer pump for rear window washer system with antiseize agent.
Ensure hose is laid without kinks.
