61 62 060 Removing and installing/replacing rear window wiper motor: Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

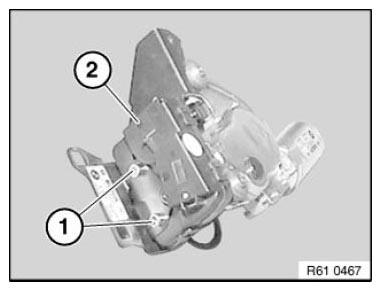

Release screws (1) and remove rear window lock (2).

Fig 1: Identifying Rear Window Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position special tool 61 1 370 on drive of rear window wiper (1). Insert guide pin (2) into mounting (3) on wiper motor

Fig 2: Identifying Rear Window Wiper And Guide Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Allow journal of wiper shaft bearing to snap into bore (1) with rear window wiper standing vertical .

Close window.

Tighten rear window wiper motor.

Tightening torque 61 62 8AZ .

Fig 3: Identifying Wiper Shaft Bearing In Bore

Courtesy of BMW OF NORTH AMERICA, INC.
