61 62 030 Removing and installing/replacing wiper arm on rear window: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

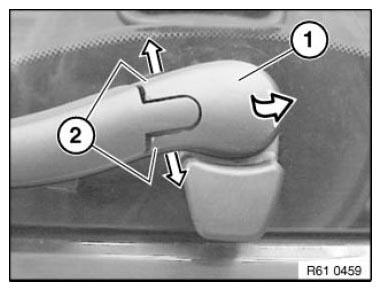

Spread internal catches (2) as illustrated and remove cover cap (1) in direction of arrow.

Fig 1: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

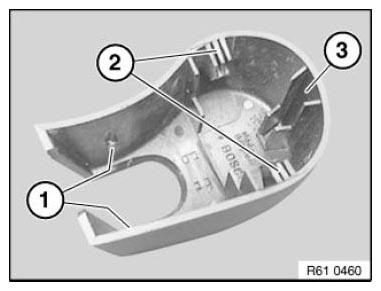

Catches (1) and mounts (2) of cover cap (3) must not be damaged.

Fig 2: Identifying Catches, Mounts And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

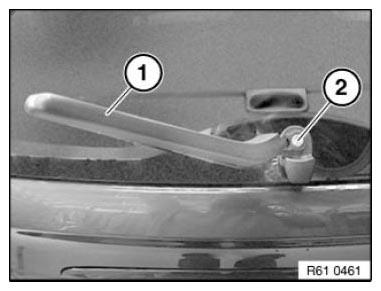

Set wiper arm (1) upwards.

Slacken nut (2).

Tightening torque 61 62 5AZ .

Press off wiper arm (1) with special tool 61 6 060 and remove.

Fig 3: Identifying Wiper Arm And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.
