61 62 030 Removing and installing/replacing wiper arm on rear window: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Before fitting wiper arm, allow wiping system to run two wipe cycles into park position.

Adjust measurement (A) between wiper arm and rear window edge.

Measurement (A): 35 ± 3 mm.

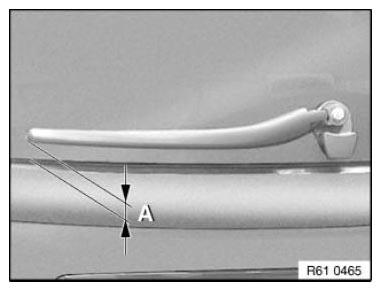

Fig 1: Identifying Wiper Arm And Rear Window Edge Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
