61 31 043 Removing and installing or replacing roof switch cluster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

IMPORTANT: Reflector on interior roof light must not be damaged!

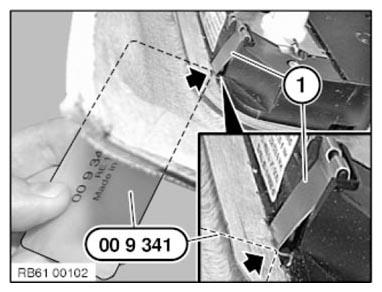

Carefully unclip trim of interior roof light (1) from interior roof light with special tool 00 9 341 in direction of arrow and remove.

Fig 1: Removing Trim Of Interior Roof Light With Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

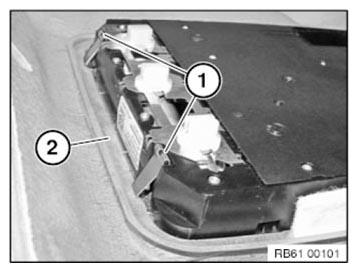

NOTE: Roof switch cluster is secured to frame of headliner (2) with two retaining clips (1).

Fig 2: Identifying Headliner And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

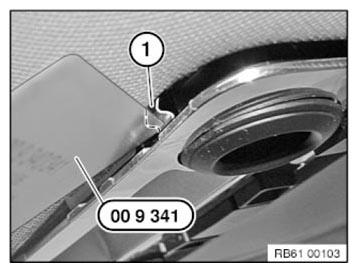

IMPORTANT: Reflector (2) and headliner (3) must not be damaged!

Retaining clips (1) are located on centerline of both reading lights.

Position special tool 00 9 341 as illustrated.

Fig 3: Identifying Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown from above on a model for clearer illustration.

IMPORTANT: Risk of damage!
Retaining clips (1) must not be damaged!

Position special tool 00 9 341 as illustrated.

Fig 4: Identifying Retaining Clips And Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 00 9 341 as illustrated and release retaining clips (1).

NOTE: Only then can the roof switch cluster be removed without causing damage!

Fig 5: Identifying Retaining Clips And Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Lever roof switch cluster (1) out of headliner (2) with special tool 00 9 341 in direction of arrow.

Disconnect plug connections underneath and remove roof switch cluster (1).

NOTE: Disconnecting the plug connection for the hands-free microphone or emergency call button results in fault memory entries in the telephone control unit (limitation in the emergency call system).
After fitting, read out fault memory and if necessary delete entries.

Fig 6: Removing Switch Cluster Of Headliner With Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Immediately after removal, fit interior roof light cover (1) to roof switch cluster (3):

Feed in interior roof light cover (1) at line (2)
Press interior roof light cover (1) onto interior roof light in direction of arrow

Make sure interior roof light cover (1) is correctly engaged on interior roof light.

Fig 7: Pressing Interior Roof Light Cover Onto Interior Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, activate slide/tilt sunroof. See 54 0... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION OF CHARACTERISTIC CURVE)

Replacement:

If necessary, activate slide/tilt sunroof. See 54 0... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION OF CHARACTERISTIC CURVE) .
If necessary, remove BULBS .
