Removing MPQ contacts from radio plug

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (1) in direction of arrow.

Detach secondary lock (2) from radio plug.

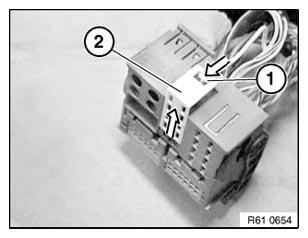

Fig 1: Detaching Secondary Lock From Radio Plug
G06213400Courtesy of BMW OF NORTH AMERICA, INC.

Feed special tool 61 1 135 past side of contact.

Press special tool 61 1 135 in direction of arrow.

Pull wire (1) with socket contact out of radio plug (2).

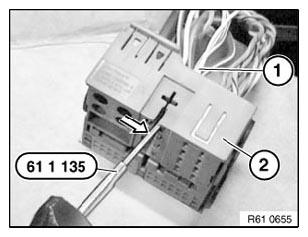

Fig 2: Pressing Special Tool 61 1 135 In Direction Of Arrow
G06213401Courtesy of BMW OF NORTH AMERICA, INC.
