Installation in wet area (engine compartment, wheel arch)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealing compound on both sides and press into contacts (1).

Fit shrink-fit hose and heat up with hot air blower (2) (approx. 250 °C).

NOTE: Ensure that fan connector has sufficient contact surface on mounting point.
Do not heat shrink-fit hose on edges of fan connector too strongly, risk of cracking.

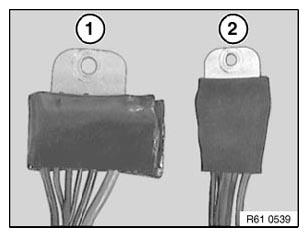

Fig 1: Identifying Shrink-Fit Hose With Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Allow shrink-fit hose to cool down until hand-warm. Then press sealing material again into contacts and onto edges of fan connector.

If necessary, carefully heat shrink-fit hose again.
