Raising vehicle at front:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove front spoiler/spoiler lip.

E67: Fit jacking point (purchase of part by way of Electronic Parts Catalogue).

Slide trolley jack under vehicle at front middle until the rubber contact plate is situated below the jacking point.

Raise vehicle with trolley jack.

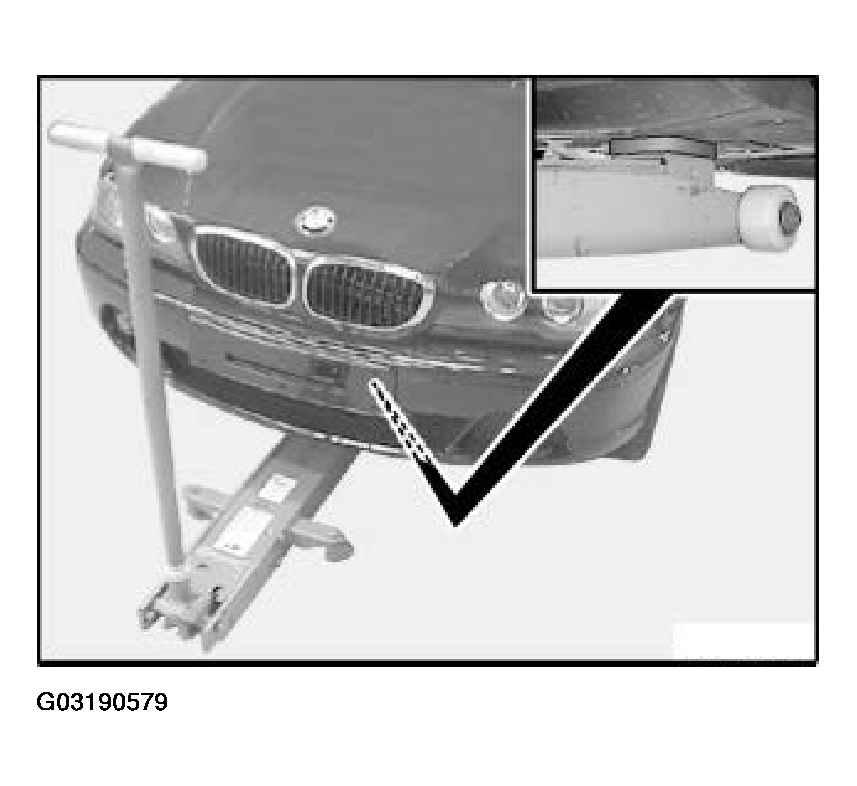

Fig 1: Supporting Vehicle With Trolley Jack (Front)
G03190579Courtesy of BMW OF NORTH AMERICA, INC.
