51 71 481 Removing and installing/replacing tension strut (on rear axle)
WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, and 2009 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension strut screws must be tightened to torque and then tightened down with special tool 00 9 120 .
Driving without tension struts may damage the vehicle body.
Tension strut screws must be tightened to torque and then tightened down with special tool 00 9 120 .

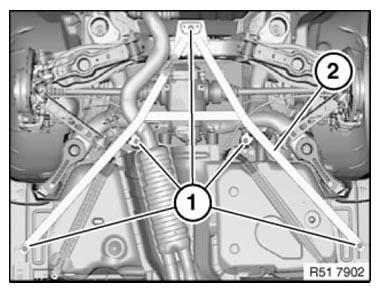

Release screws (1) and remove tension strut (2).
Installation:
Replace screws.
Tightening torque 51 71 3AZ .
