Necessary preliminary tasks

WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, and 2009 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Rubber mounts must not be mixed up!

A = Remove RUBBER MOUNT

B = Remove RUBBER MOUNT (WITH HYDRAULIC DAMPING)

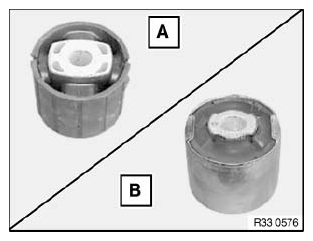

Fig 1: Identifying Rubber Mounts
G04726467Courtesy of BMW OF NORTH AMERICA, INC.
