SI number

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

02 05 04 (120)

Consisting of:

1 = 0494894 Adapter cable

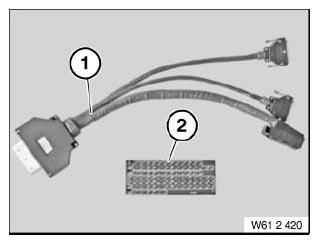

Fig 1: Identifying Adapter Cable (61-2420)
G04739553Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: (adapter cable 88-pin for engine control unit)

2 = 0494895 Plate

NOTE: (cover plate for test box) For assignment of individual modules
