Storage Location

WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, and 2009 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

C7

Consisting of:

2 = 0492351 Spindle

NOTE: (Spindle) Series: E28 Replaced by 33 4 301 (0 496 535)

8 = 0492357 Nut

NOTE: (Nut with bearing) Series: E28 Replaced by 33 4 302 (0 496 536)

5 = 0492354 Washer

NOTE: (thrust washer) For installing wheel bearing, rear/Series: E28/model: 518, 520i

7 = 0492356 Washer

NOTE: (thrust washer) For installing wheel bearing, rear/Series: E28/model: 525i, 528i

9 = 0492358 Nut

NOTE: (nut)

1 = 0492350 Bell housing

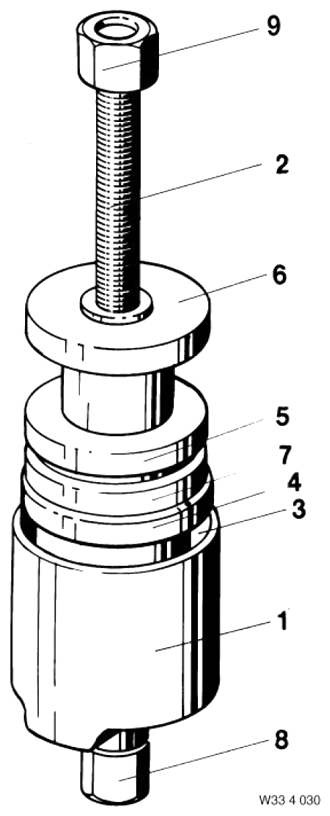

Fig 1: Identifying Tool (33-4030)
G06966019Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: For counter support when removing the rear wheel bearing

3 = 0492352 Washer

NOTE: (thrust washer) For removing wheel bearing, rear/Series: E28/model: 518, 528i

4 = 0492353 Sleeve

NOTE: (guide sleeve) For installing wheel bearing, rear/Series: E28/model: 518, 520i

6 = 0492355 Sleeve

NOTE: (guide sleeve) For installing wheel bearing, rear/Series: E28/model: 525i, 528i
