SI number

WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, and 2009 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

01 05 90 (207)

Consisting of:

1 = 0492311 Sleeve

NOTE: (Locator sleeve) For removing and installing rubber mount/model series: E31, E36

2 = 0492312 Synchronizing key

NOTE: For removing rubber mount at rear axle final drive cover/model series: E31, E36, E38, E60, E61, E63, E64, E65, E66, E67, RR1

3 = 0492313 Synchronizing key

NOTE: For installing rubber mount at rear axle final drive cover - model series: E31, E36, E38 For removing rubber mount at rear axle final drive cover - model series:E46

6 = 0492316 Synchronizing key

NOTE: For installing rear rubber mount in rear axle support/model series: E31

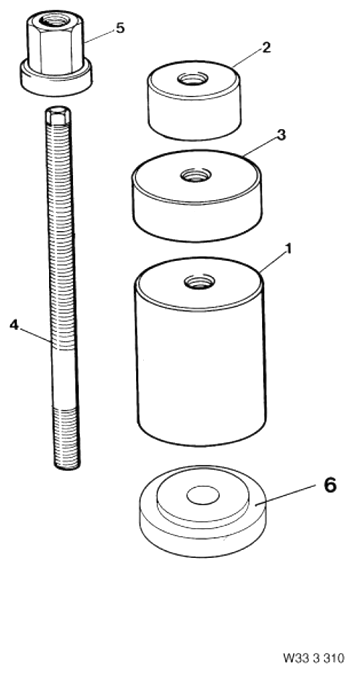

Fig 1: Identifying Tool (33-3310)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0492314 Spindle

NOTE: For removing and installing rubber mount Model series: E31, E36, E38, E46, E60, E61, E63, E64, E65, E66, E67, E85, RR1 Replaced by 33 3 011/0 496 553

5 = 0492315 Nut

NOTE: (Nut with bearing) Series: E31, E36, E38, E46, E60, E61, E63, E64, E65, E66, E67, E85, RR1

Replaced by 33 3 012/0 496 554
