Storage Location

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

C15

C16

Consisting of:

1 = 0491458 Holding sleeve

2 = 0491459 Pin

NOTE: (Dowel pin (2 x))

3 = 0491460 Synchronizing key

NOTE: (Synchronizing key, long)

4 = 0491461 Synchronizing key

NOTE: (Synchronizing key, short)

5 = 0491462 Handle

5 = 0491463 Pin

NOTE: (Dowel pins for Getrag transmission)

7 = 0491464 Synchronizing key

NOTE: (Synchronizing key for Getrag transmission)

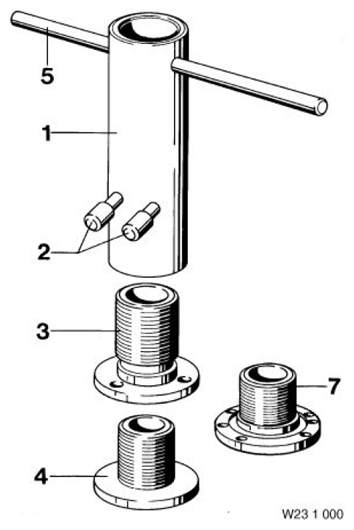

Fig 1: Identifying Device (23-1000)

Courtesy of BMW OF NORTH AMERICA, INC.
