31 60... Notes on removing and installing Low Profile band clamps: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

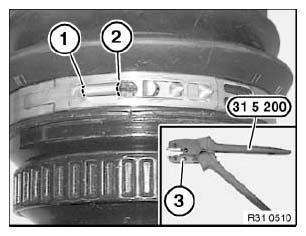

Fig 1: Identifying Special Tool (31 5 200) On Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

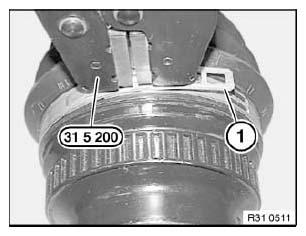

Fig 2: Compressing Low Profile Band Clamp Using Special Tool (31 5 200)

Courtesy of BMW OF NORTH AMERICA, INC.
