31 60... Notes on removing and installing Low Profile band clamps: Assembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

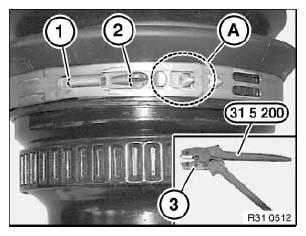

Fig 1: Identifying Low Profile Band Clamp Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

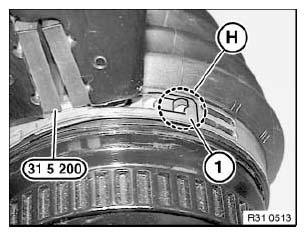

Fig 2: Compressing Low Profile Band Clamp Using Special Tool (31 5 200)

Courtesy of BMW OF NORTH AMERICA, INC.
