Carry out check

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

There must always be a minimum amount of play in the guide joint.

Check guide joint play
NOTE: For this purpose, apply light pressure to the compression strut (in the area of the guide joint) in the horizontal and vertical directions.

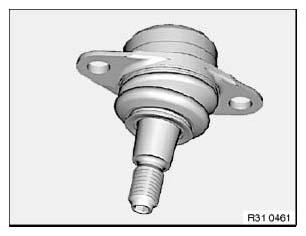

Fig 1: Identifying Guide Joint
Courtesy of BMW OF NORTH AMERICA, INC.
- Play is OK: Check bolt connection
- Play is not OK: Replace guide joint
Check bolt connection (compression strut to guide joint) by tightening to 60 % of tightening torque 31 12 6AZ and listening for cracking sound. See 31 12 CONTROL ARMS AND STRUTS
- Torque wrench cracking sound: Guide joint does not have to be replaced
- Bolt connection turns: Replace compression strut and guide joint
